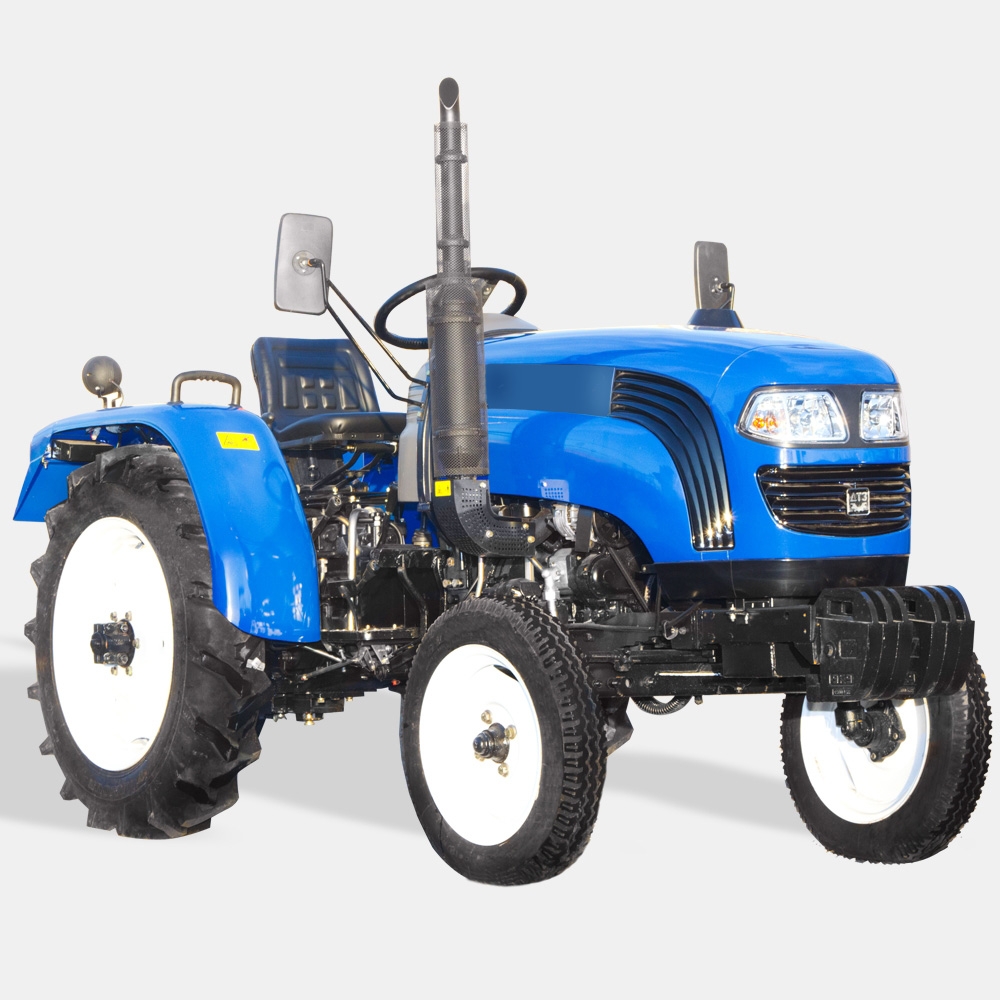

With different implements attached, our 4x4 wheel drive small tractor XZ 4240 H can be used for agriculture and urban public utilities.
Additional Specifications:
- Three-cylinder engine with improved traction and increased engine life period
- Steering booster
- Independent hydraulic system oil tank
- Electrical socket for trailer
- Integrated electronic dashboard
- Comfortable adjustable suspension seat
- Greater ground clearance
- Strengthened suspension system
- Low fuel consumption
| Tractor power cc (kW) | 24(17,6) | |
| Wheel arrangement | 4х2 | |
| Engine type | Vertical, 3-cylinder, 4-stroke diesel engine, forced water cooling and direct injection. | |
| Engine start | Electric starter with safe start up | |
| Engine displacement, cm3 | 1532 | |
| Bore and stroke | 85х90 | |
| Rated fuel consumption, g/kW*h | 248 | |
| Fuel pump type | Piston, in-line | |
| Engine crankshaft rated rpm, r/pm | 2350 | |
| Force exerted rating, kN | 4,8 | |
| Engine oil type | Lubricating mineral oil or semi-synthetic oil for diesel engines |
|
| Engine oil fuel consumption, g/kW*h | 2,04 | |
| Gear box | (4+1)х2 | |
| Gear box oil type, rear axle oil type | Transmission type | |
| Front axle oil type | - | |
| Rear differential lockup | + | |
| Clutch | Dry, single-plate clutch | |
| Power steering | + | |
| Cooling system fan drive | V-belt drive | |
| Brake mechanism | Drum-type | |
| PTO shaft rpm, r/pm | 540/1000 | |
| Hydraulic system pump type | Gear-type pump | |
| Attached mechanism max. capacity, kg | 414 | |
| Min, clearance, mm | 347 | |
| Wheel base, mm | 1720 | |
| Wheel tread, mm | rear wheels | 1150-1350 |
| front wheels | 1100-1300 | |
| Tyres size | rear tyres | 9.5-24 |
| front tyres | 5.00-16 | |
| Minimum swing radius, m | single-side brake | 2,5 |
| without brake | 3,0 | |
| Theoretical driving speed, km/h | forward | 1,92-29,83 |
| backward | 0,54-11,91 | |
| Fuel tank capacity, l | 21 | |
| Crank case capacity, l | 3,5 | |
| Gearbox and rear axle casing capacity, l | 11 | |
| Front axle casing capacity, l | - | |
| Engine cooling system capacity, l | 10 | |
| Locklift casing capacity, l | 9 | |
| Overall dimensions (l*w*h), mm | 3030х1470х1907 | |
| Weight kg | 1210 | |
